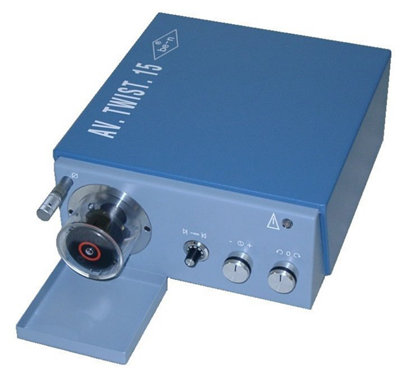

AV.Twist.15
Stripping range : 0.03 mm²- 4 mm² or up to 4.5 mm outside-Ø
Stripping length : 1.5 mm – 15 mm
|
| |
|
 |

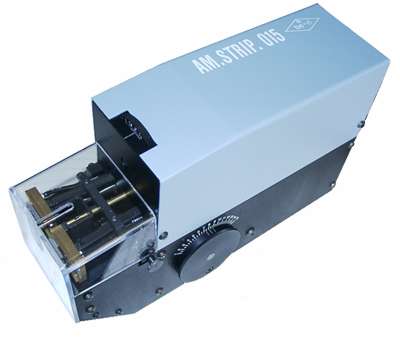

AM.Strip.015
Round cable : up to 5.0 mm outer diameter
Cross section : from 0.15 - 4.0mm²
Flat band cable : up to 8 mm width
Stripping length : 1.5 - 15mm (special version up to 25mm is possible)
|
| |
|
 |

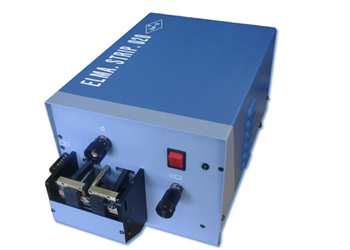

Elma.Strip.020
Round cable : up to 8 mm outer diameter
Flat band cable : up to 10 mm width
Stripping length : 1.5 - 20 mm (full stripping)
1.0 - 35 mm (partial stripping)
|
| |
|
 |

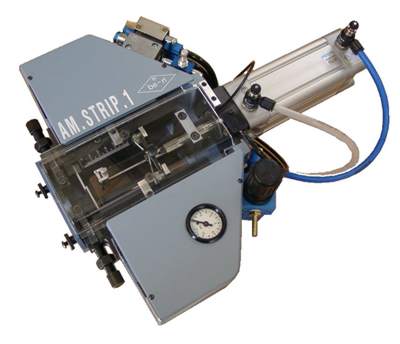

AM.Strip.1
Round cables : from 0.5 - 15mm outer diameter
Flat band cables : up to 20 mm width
Max. strip length : up to 65 mm full stripping
up to 250 mm partial stripping
|
| |
|
|
AM.Strip.1s (sensor)
Round cables : from 0.5 - 15mm outer diameter
Flat band cables : up to 20 mm width
Max. strip length : up to 65 mm full stripping
up to 250 mm partial stripping
Special version : With sensor
|
| |
|
 |

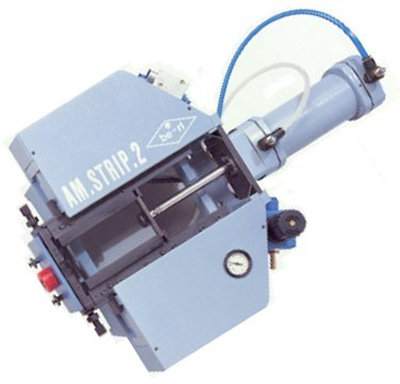

AM.Strip.2
Round cable : from 1.0 – 25 mm outer diameter
Flat band cable : up to 35 mm width
Max. strip length : up to 120 mm full strip
up to 450 mm partial strip
|
| |
|
|
AM.Strip.2s (sensor)
Round cable : from 1.0 – 25 mm outer diameter
Flat band cable : up to 35 mm width
Max. strip length : up to 120 mm full strip
up to 450 mm partial strip
Special version : With sensor
|
| |
|
|
AM.Strip.2/35
Round cable : from 1.0 –35 mm outer diameter
Flat band cable : up to 35 mm width
Max. strip length : up to 120 mm full strip
|
| |
|
|
AM.Strip.2 V
Round cable : from 1.0 – 25 mm outer diameter
Flat band cable : up to 35 mm width
Max. strip length : up to 230mm full strip
up to 450 mm partial strip
|
| |
|
 |

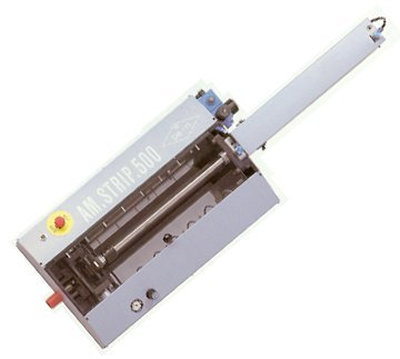

AM.Strip.500
Round cable : max. 30mm outer diameter
Flat band cable : max. 32 mm width
Max. strip length : 500mm
|
| |
|
|
AM.Strip.750
Round cable : max. 30mm outer diameter
Flat band cable : max. 32 mm width
Max. strip length : 750mm
|
| |
|
|
AM.Strip.1000
Round cable : max. 30mm outer - Ø
Flat band cable : max. 32 mm width
Max. strip length : 1000mm
|
| |
|
 |

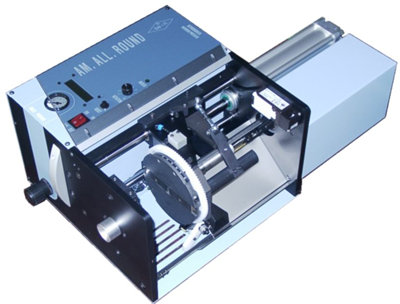

AM.All.Round
Round cable : 2.0 - 24mm outer - Ø
Stripping length : 5 - 160mm
|
| |
|
|
AM.All.Round/400
Round cable : 2.0 - 24mm outer diameter
Stripping length : 5 - 160mm
Partial stripping length : up to 400mm
|
| |
|
|
AM.All.Round/750
Round cable : 2.0 - 24mm outer diameter
Stripping length : 5 - 160mm
|
| |
|
 |
AI 01
Stripping range : 0.05 – 6 mm² (AWG30–10)
Stripping length : 3 mm – 20 mm
Infeed length : 22 mm + L
|
| |
|
 |
AI 02
Stripping range : 0.05 – 2.5 mm² (AWG30–14)
Stripping length : 3 mm – 20 mm
Infeed length : 15 mm + L
|
| |
|
 |

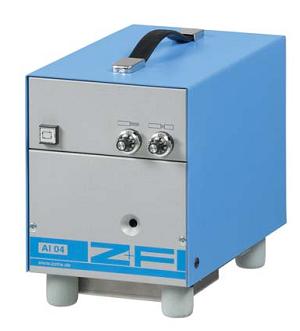

AI 04
Stripping range : 2.5 – 16 mm² (AWG14–6)
Stripping length : 3 mm – 20 mm
Infeed length : 22 mm + L
|
| |
|
 |

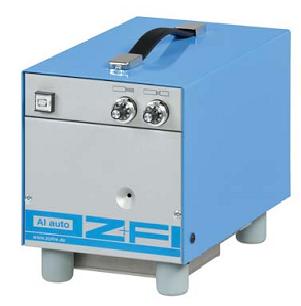

AI 2.5-20 auto
Stripping range : 0.5 – 2.5 mm² (AWG20–14)
Stripping length : 3 mm – 20 mm
Infeed length : 24 mm + L
|
| |
|
 |
AI 16-20 auto
Stripping range : 4 – 16 mm² (AWG12–6)
Stripping length : 3 mm – 20 mm
Infeed length : 24 mm + L
|
| |
|
 |

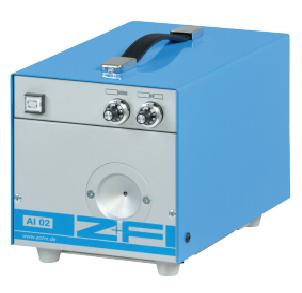

AI 02 Special
Stripping of 3 wire conductor in one step
Stripping range : 0.5 – 1 mm² (AWG20–18)
Stripping length : 5 mm – 10 mm
Infeed length : 15 mm + L
|
