Coaxial Cable Stripping Machines
 |

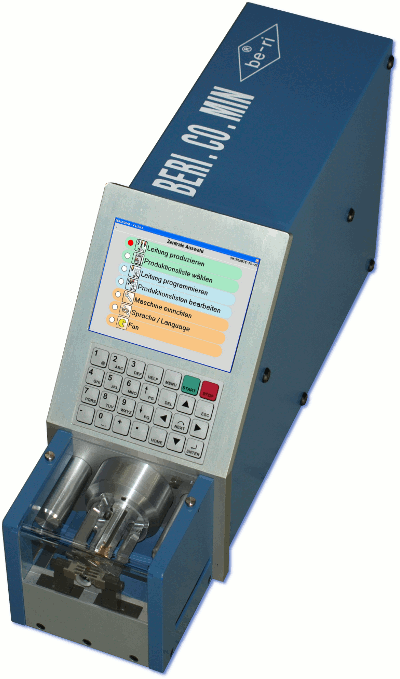

Co.Min
Stripping range : 0 – 4.0 mm (0.0" - 0.16") outer cross section (depending on insulation features)
Stripping length : 0 - 40.0 mm (0.0" - 1.57") (37.4 mm / 1.47" with foot-switch)
Operating voltage : 230 V – 110 V
Sound level : < 60 dB(A)
W x D x H : 130 x 300 x 230 mm (5.12" x 11.81" x 9.06")
|
| |
|
 |
Co.Ma
Stripping range : 0 – 9.0 mm (0.0" - 0.35") outer cross section (depending on insulation features)
Stripping length : 0 - 40.0 mm (0.0" - 1.57") (37.4 mm / 1.47" with foot-switch)
Operating voltage : 230 V – 110 V
Sound level : < 60 dB(A)
W x D x H : 130 x 300 x 230 mm (5.12" x 11.81" x 9.06")
|
| |
|
 |

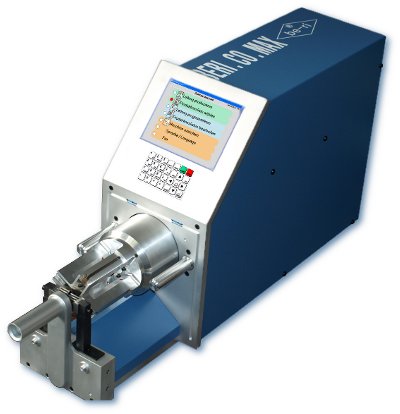

Co.Max
Stripping range : 2.0 – 18.0 mm (0.08" - 0.71") outer cross section (depending on insulation features)
Stripping length : 0 - 100.0 mm (0.0" - 3.94")
Operating voltage : 230 V – 110 V
Sound level : < 60 dB(A)
W x D x H : 200 x 950 x 400 mm (7.87" x 37.4" x 15.75")
|
| |
|
 |

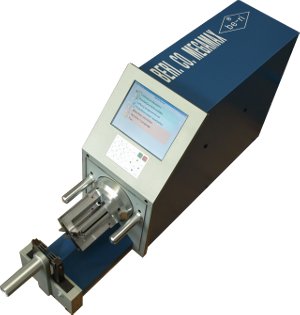

Co.Megamax
Stripping range rsp. opening range of blades: > 7.0 – 25.0 mm (0.27" - 0.98") outer cross section (depending on insulation features)
Stripping length : 0 - 100.0 mm (0.0" - 3.94")
Operating voltage : 230 V – 110 V
Sound level : < 60 dB(A)
W x D x H : 200 x 950 x 400 mm (7.87" x 37.4" x 15.75")
|
| |
|
 |

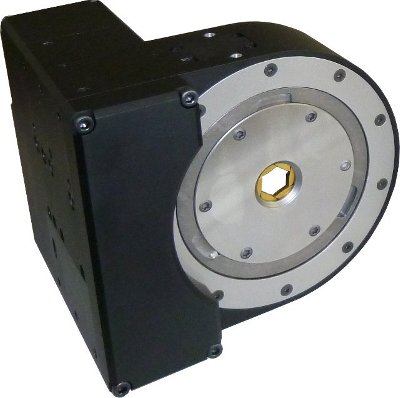

Co.Flex
Inside opening of blades : up to 0.70" (18.0 mm) max. ø 18.0 mm
Stripping diameter resp. diameter of cable : up to 0.66" (17,0 mm) outer - ø (depending on insulation features)
Stripping length : endless rsp. depending from machines
Blades : 6 special blades with radial curring edges
|
| |
|
 |

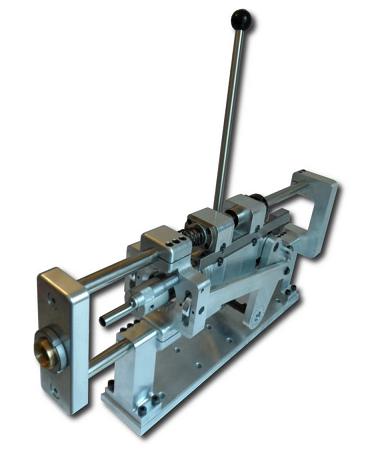

Co.Cut
Accurately cuts shieldings and braidings of coaxial cables
Stripping diameters : 7 - 22mm (depending on cable)
|
| |
|
 |

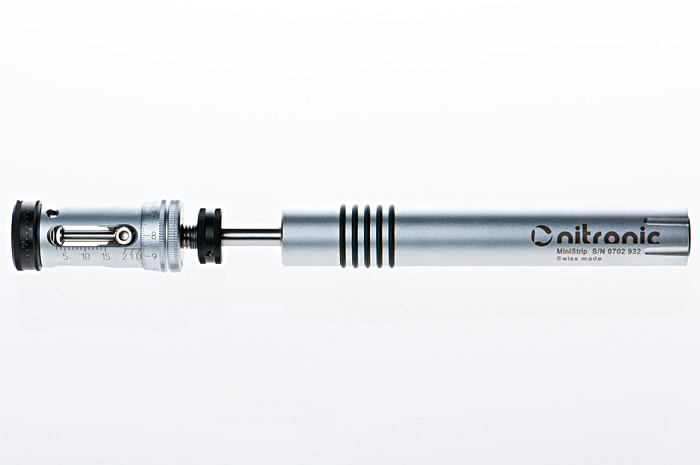

Ministrip
Wire Size Range : 0.1mm (0.004") to 2.0mm (0.08") (12 - 38AWG)
Max. OD : 2.5mm (0.1")
Stripping Length : Up to 15mm (0.59")
Cutting : Rotative with 4 blades
|
| |
|
 |

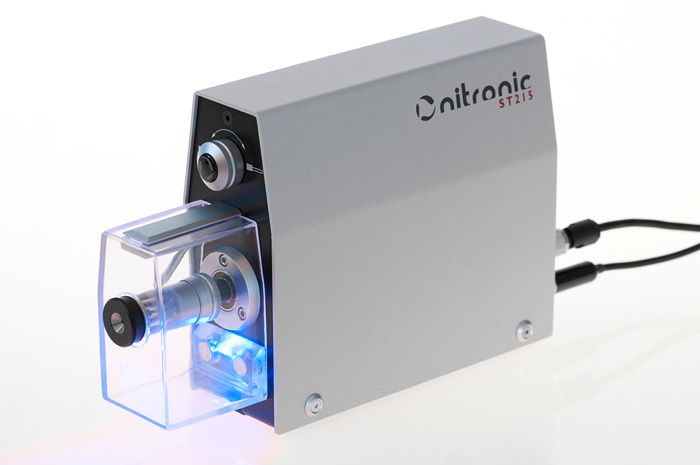

ST 215 / ST 215W
Wire Size Range : 0.025mm (0.001") to 2.0mm (0.08") (12 - 50AWG)
Max. OD : 2.5mm (0.1")
Stripping Length : up to 13mm (0.5")
|
| |
|
 |

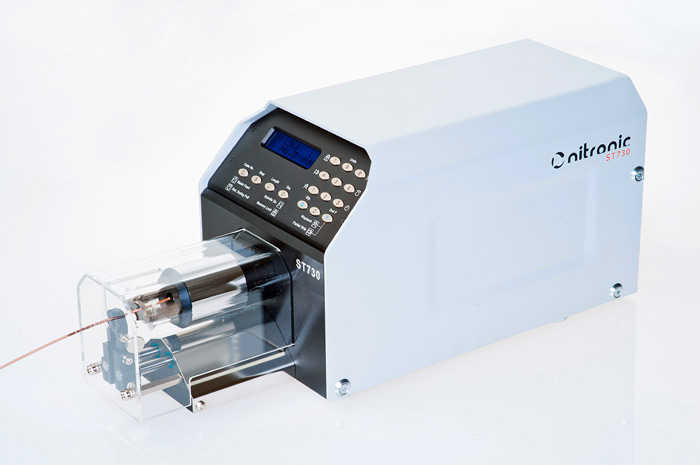

ST 730
Outer Cable Diameter : max. 7 mm (0.28"), Resolution 0.01mm
Stripping Length : max. 30 mm (1.18"), Resolution 0.1mm
Max. Stripping Steps : 9
|
