CP 600
• Consistent crimps with precise closure
• Integrated, releasable ratchet to ensure a complete crimp
• Exchangeable tool head system incorporating radial and parallel operating technology
• High crimp performance due to special profile geometries
• Optional foot pedal available
|
| |
|
 |
UP 14
Crimp Force: max. 14 kN at 6 bar
Air Pressure: max. 6 bar/ 87 psi
Noise Level: 73 dB(A)
Air Consumption: 0,45 l per stroke
Dimensions: 300x125x260 mm
Weight: approx. 13 kg
|
| |
|
 |
KN 10
Crimping force : 10kN (1 ton)
Power : 1.8Kw
Weight : 520 N (53kg)
Gauge Capability : max 4mm² (AWG 11)
|
| |
|
 |
KN 21
Crimping force : 20kN (2 tons)
Power : 2.3Kw
Weight : 540 N (55kg)
Gauge Capability : max 6mm² (AWG 10)
|
| |
|
 |
KN 1110
Crimping force : 15kN (1.5 tons)
Power : 1.4Kw
Weight : 80kg
Gauge Capability : max 6mm² (AWG 10)
|
| |
|
 |
KN 20
Crimping force : 20kN (2 tons)
Power : 0.75Kw
Weight : 80kg
Gauge Capability : max 10mm² (AWG 7)
|
| |
|
 |
KN 30
Crimping force : 30kN (3 tons)
Power : 1.1Kw
Weight : 95kg
Gauge Capability : max 16mm² (AWG 5)
|
| |
|
| |
|
 |

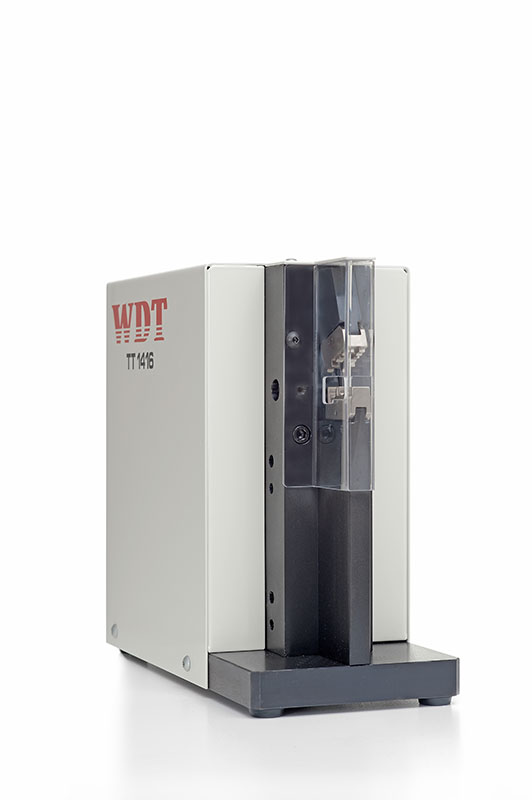

TT 1416
Crimp force : 19 kN at 6 bar
Air pressure : max. 6 bar / 90 PSI
Noise level : 73 dB(A)
Dimensions : 270 x 120 x 240 mm
Weight : 15.2 kg
|
| |
|
 |
TT 1416CA
Crimp force : 19 kN at 6 bar19 kN at 6 bar
Air pressure : max. 6 bar / 90 PSI
Noise level : 73 dB(A)
Dimensions : 270 x 120 x 240 mm
Weight : 15.2 kg
|
| |
|
 |
CTR 16
|
| |
|
 |
FMP 20
Crimp force : starting at 9 kN and exponentially increasing to max. 120 kN at die closure at 6 bar
Air pressure : max. 6bar / 90PSI
Noise level : 63 dB(A)
Dimensions : 280x160x280mm
Weight : 20kg
|
| |
|
 |
FMP 20BA
Crimp Force: starting at 9 kN and exponentially increasing to max. 120 kN at die closure at 6 bar
Air Pressure: max. 6bar / 90PSI
Noise Level: 63 dB(A)
Dimensions: 280x160x280mm
Weight: 20kg
|
| |
|
 |
SSC 2FP
Crimp force: starting at 9 kN t and exponentially increasing to max. 120 kN at die closure at 6 bar
Adjustable pre-crimp pressure and speed
Air Pressure: max. 6bar / 90PSI
Noise Level: 62 dB(A)
Dimensions: 280x160x280mm
Weight: 26kg
|
| |
|
 |
UP/42 N
|
| |
|
 |
UP/55
|
| |
|
 |
UP/66
Max Power: 150kN
Wire: 0.14 - 400mm²
Max Power: 150kN
Stroke Max.: 40mm
Power: 400v, 3 Phase
Dimensions: 510x220x290mm
Weight: Approx 135kg
|
| |
|
 |

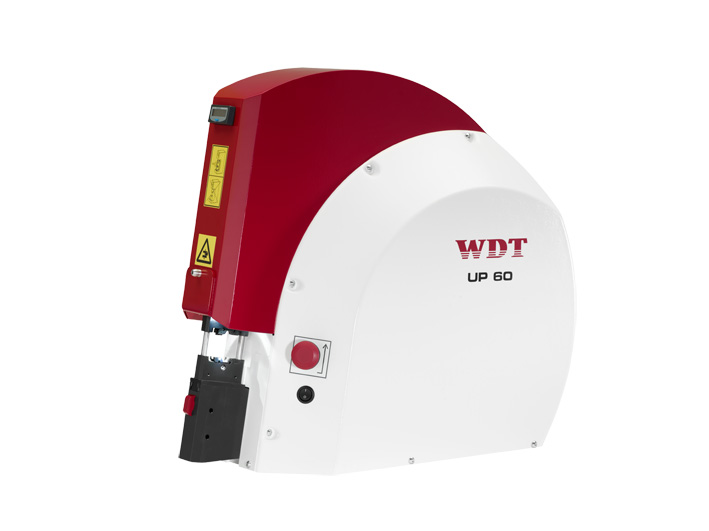

UP/60
Crimp Force: 75 kN at 6 bar
Air Pressure: max. 6 bar /87 psi
Air Consumption at a stroke of 10mm Hub: 17,1l
Air Consumption at a stroke of 32mm Hub: 55l
Opening Dimension: stroke min. 10mm, stroke max. 32mm
Noise Level: 69 dB(A)
Dimensions: 540x260x515mm
Weight: 60kg
|
| |
|
 |

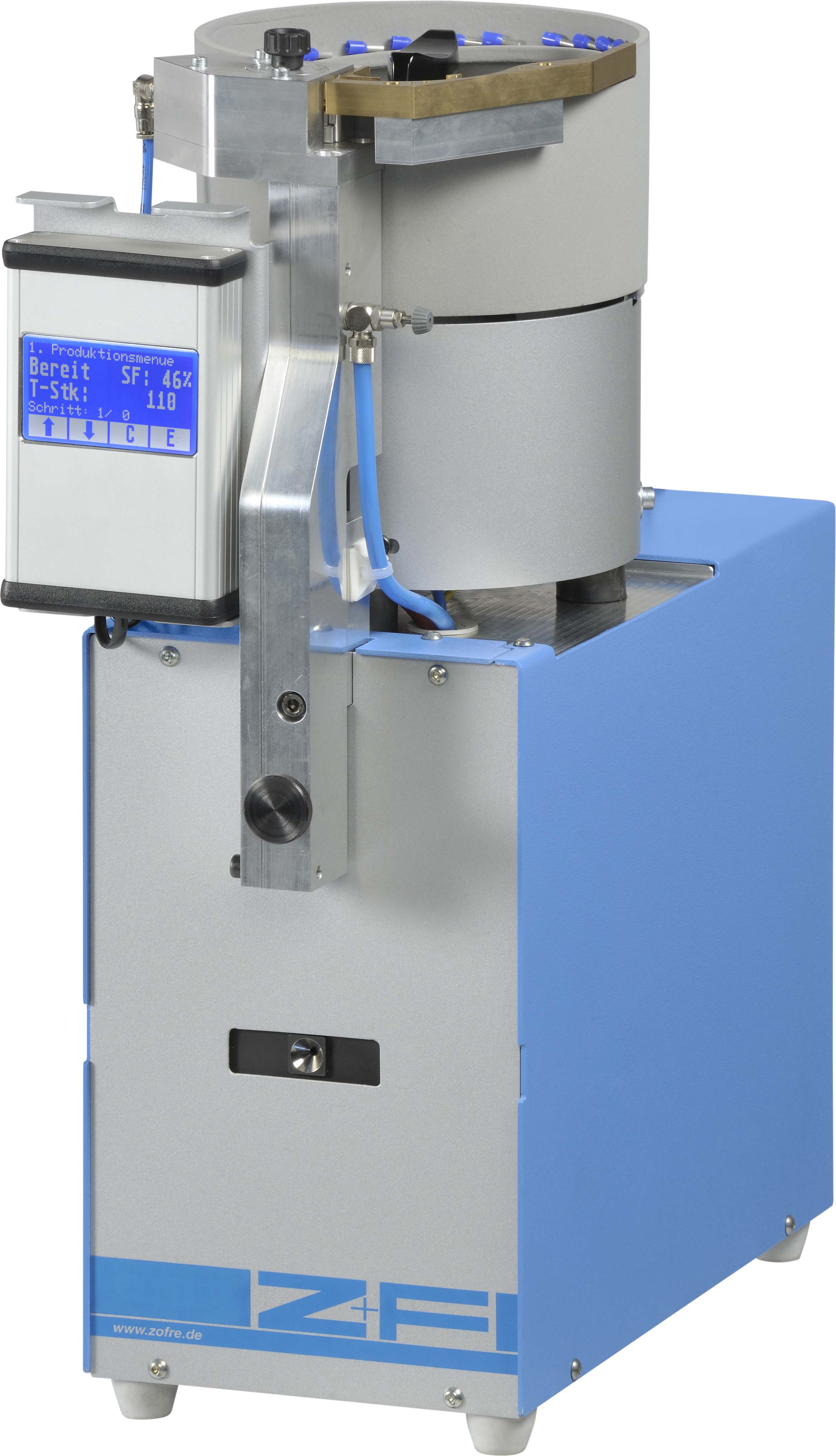

Crimper LS
Crimping range : 0.34 – 4.0mm² (22 – 12AWG)
Crimping length (CL) : 6 – 12mm
Infeed length : 14 + CLmm
|
| |
|
 |

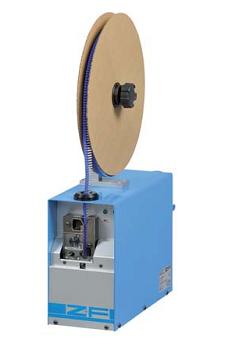

CM AEH-G
Crimping range : 0,5 – 2,5mm² (20 – 14AWG)
Crimping length (CL) : 8mm
Infeed length : 22 + CLmm
|
| |
|
|
CM AEH-LS
Crimping range : 0,34 – 4mm² (22 – 12AWG)
Crimping length (CL) : 6 - 12mm
Infeed length : 14 + CLmm
|
| |
|
 |

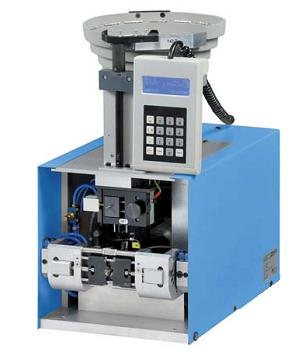

CM 03
Crimping range : 0.34 – 4.0mm² (22 – 12AWG)
Infeed length : 16mm
|
| |
|
 |
CR 03
Crimping range : 4 – 6mm² (12 - 10AWG)
Infeed length : 23mm
|
| |
|
 |

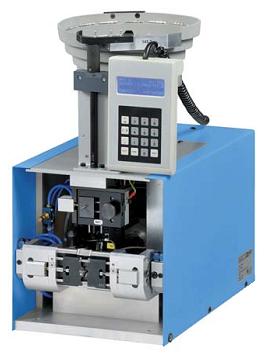

CM 04
Crimping range : 0.5 – 10mm² (20 – 8AWG)
Crimping length (CL) : 6 – 18 / Quadro bis 12mm
Infeed length : 12 + CLmm
|
| |
|
 |
SC 03
Crimping range : >70mm² (2/0AWG)
Crimping length (CL) : >30mm
Infeed length :
>16mm² -> 20 + CLmm
>16mm² -> 120 + CLmm
|
| |
|
 |
SC 05
Crimping range : 0,34 – 4mm² (22 – 12AWG)
Crimping length (CL) : 6 – 18 / Quadro bis 12mm
Infeed length : 13 + CLmm
|
