KM 3011

Crimping force : 20kN (2 tons)
Standard stroke : 40mm
Power : 0.75Kw
Gauge Capability : Stripping up to 2.5 sqmm (AWG 13) , Crimping up to a 6 sqmm only (AWG 10)

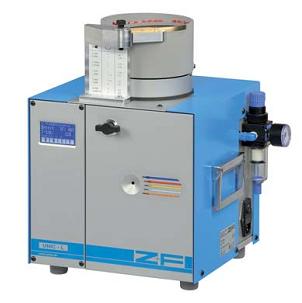

UNIC-L

Crimping range : 0.5 – 2.5mm² (20 – 14AWG)
Crimping length (CL) : 8mm
Infeed length : 35mm

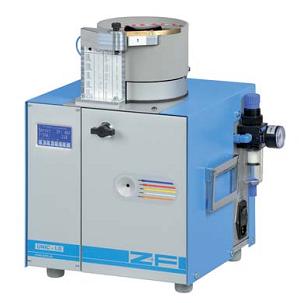

UNIC-LS

Crimping range : 0.5 – 2.5mm² (20 – 14AWG)
Crimping length (CL) : 6 - 10mm
Infeed length : 27 + CLmm

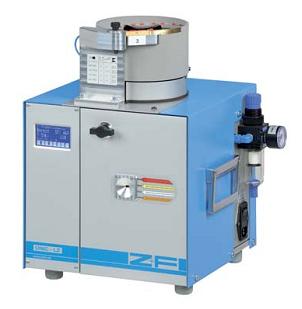

UNIC-LZ

Crimping range : 2 x 0,5 – 2 x 1,5mm² (2 x 20 – 2 x 16AWG)
Crimping length (CL) : 8mm
Infeed length : 35mm

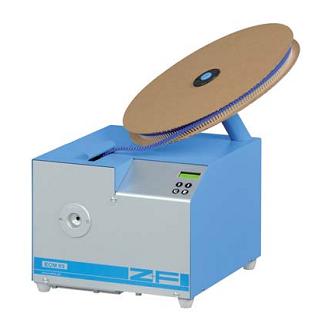

ECM 03

Crimping range : 0,34 – 2,5mm² (22 - 14AWG)
Crimping length (CL) : 8mm
Infeed length : 40mm

UNIC-G

*Universal Stripper-Crimper for ferrules on reel
Crimping range : 0.5 – 2.5mm² (20 – 14AWG)
Crimping length (CL) : 8mm
Infeed length : 35mm

UNIC-GS

The UNIC-GS is based on the UNIC-G, specially adapted for the use as Stripper-
Crimper in automatic wire processing systems as Triathlon work center, Artos and
Megomat systems.
The machines are additionally equipped with:
- last ferrule detection
- special infeed funnels
- digital interface, I/O

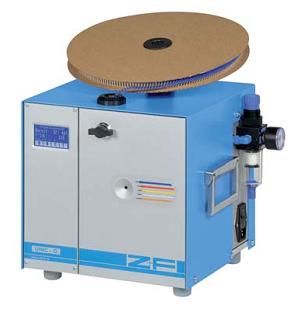

PZ3-Crimp

Our standard crimping tools produce trapezoid crimps in the cross-section range of 0.5 up to 2.5 mm². For special applications, e.g. small or spring-loaded terminals, the PZ3 tool has been developed. This tool is also usable in the range of 0.5 and 2.5 mm² and produces a rectangular crimp which is also conforming to DIN 46228. The special tool can be used alternatively to the standard tool in the UNIC-machines.

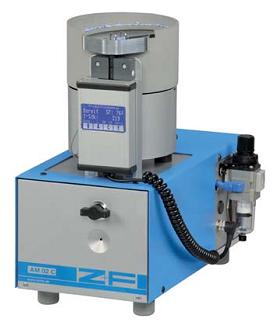

AM 02C

Crimping range : 0.14 – 0.34mm² (26 – 22AWG)
Crimping length (CL) : 6 / 8mm
Infeed length : 16 + CLmm

AM 02.1C

Crimping range : 0.25 – 0.75mm² (24 – 18AWG)
Crimping length (CL) : 5 - 10mm (12)
Infeed length : 16mm

AM 02 Universal

Crimping range : 0.5 – 2.5mm² (20 – 14AWG)
Crimping length (CL) : 6 - 12mm
Infeed length : 28 + CLmm

AM 02

Crimping range : 0.14 – 2.5mm² (26 – 14AWG)
Crimping length (CL) : 6 - 10mm (12)
Infeed length : 28 + CLmm

AM 02.1

Crimping range : 0.25 – 2.5mm² (24 – 14AWG)
Crimping length (CL) : 5 - 10mm (12)
Infeed length : 28 + CLmm

AM 04

Crimping range : 4 – 10mm² (12 – 8AWG)
Crimping length (CL) : 8 - 12mm (18)
Infeed length : 28 + CLmm

AM 04.1

Crimping range : 4 – 10mm² (12 – 8AWG)
Crimping length (CL) : 9 - 15mm (18)
Infeed length : 28 + CLmm

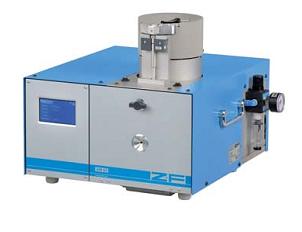

AM 03

Crimping range : 0.14 – 2.5mm² (4)/(26 – 14AWG(12))
Infeed length : 36 mm

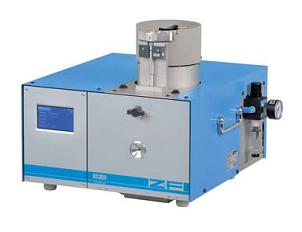

AM 03 Universal

Crimping range : 0.14 – 2.5mm² (4)/(26 – 14AWG(12))
Infeed length : 36 mm

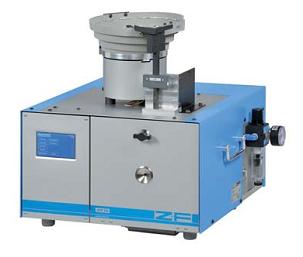

AM 05

Crimping range : 0.25 – 4mm² (6)/(24 – 12AWG(10))
Infeed length : 34 mm
