Hz 2.1

Number of Printing Wheels:
Character Height 1,5 mm to 2,3 mm 10 pieces
Character Height 2,5 mm to 4,0 mm 7 pieces

Working range cable outer-ø:
cable ø minimum 1,5 mm
cable ø maximum 25,0 mm

Dimensions: 230 x 70 x 290

Weight: 1,400 kg (3.0 lbs)

TP15/TP10

Number of printing wheels:
15 (TP 15) Character Height 1.2mm – 2.3mm
10 (TP 10) Character Height 2.5mm – 4.0mm

Working range cable outer diameter :
Cable Ø minimum 1.0mm
Cable Ø maximum 12.0mm

Dimensions:
246 x 183 x 184mm

Weight:
5.000 kg

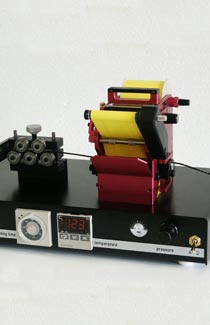

Z-283

Number of Printing Wheels:
Character Height 1,2 mm to 2,3 mm 24 pieces
Character Height 2,5 mm to 4,0 mm 16 pieces

Working range cable outer-ø:
cable ø minimum 1,0 mm
cable ø maximum 12,0 mm

Dimensions:
380 x 260 x 220

Weight:
8,200 kg (18.0 lbs)

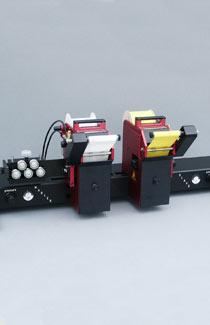

Z-284

Number of Printing Wheels:
Character Height 1,2 mm
to 2,3 mm 2x24 pieces max.

Working range cable outer-ø:
cable ø minimum 1,0 mm
cable ø maximum 8,0 mm


Dimensions:
635 x 280 x 200 Marking unit
380 x 270 x 75 Control unit

Weight:
8,500 kg (18.7 lbs) Marking unit
5,500 kg (12.0 lbs) Control unit

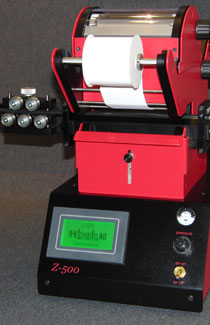

Z-500

Single marking: 1,6 mm bis 16,0 mm

In Line production: 1,6 mm bis 16,0 mm

Optional in Line prod.: 15,0 mm bis 24,0 mm

Numbers of signs per wheel: 40

Measurements (L x W x H): 470 x 230 x 400
470 x 340 x 400 with cable straightener

Weight: 20kg

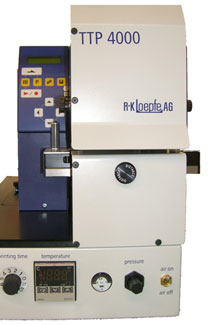

TTP 4000

Smallest cable outer diameter:
ø 2 mm (0.08 inch)

Biggest cable outer diameter:
ø 15 mm (0.59 inch)
Measurements Thermo foil:
83 mm x 300 m (3.27“ x 984 feet)

Measurements Length: 70 cm

Width: 33 cm 55 cm open

Height: 38 cm 65 cm open

Weight: 33 kg

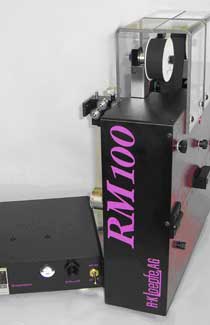

RM 100

Working Range:
round material Ø2 mm – Ø15 mm external diameter

Dimension (open):
Ringmarker L/W/H 420 x 420 x 420mm

Dimension (closed):
Ringmarker L/W/H 165 x 420 x 420mm
Control Unit L/W/H 385 x 225 x 75mm

Weight:
Ringmarker 28.6lbs (13kg)
Control Unit 13.2lbs ( 6kg)

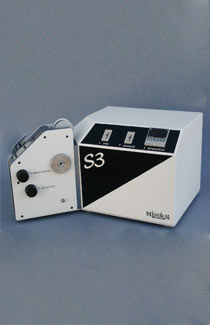

S 3

Number of Printing Wheels:
Character Height 1,6 mm
bis 2,7 mm 6 pieces

Working range cable outer-ø:
cable ø minimum 1,6 mm
cable ø maximum 6,0 mm

Signs per printing wheel:
Character Height 1,6 mm
bis 2,7 mm 28 signs (Standard)

Dimensions:

420 x 360 x 240

Weight:
12,200 kg (27.0 lbs)

Coditherm wire

The CODITHERM model more available for this application is:
ROUND to print on wire with small diameter
FLAT to print on on flat sleeve.



Many types of Thermal Transfer Ribbon are available:
Ribbon with RINK technology, for printing on glossy surface
Ribbon with POSY technology for printing on lightly matt surface

Standard colours: Black and White. Other colours available on request.
