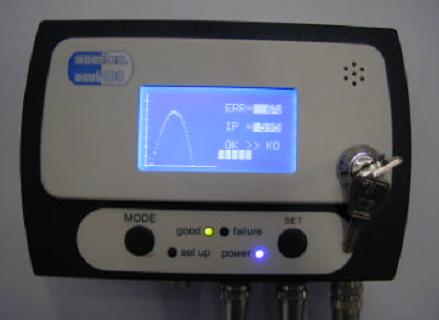

CMT 100

The crimping quality assurance system CMT100 has been designed to be mounted on crimping presses to
check the crimping qualità of crimped terminals.

Power Consumption : 500mA
Relay Contacts : 1 N.A + 1 N.C
Dimensions : 180 x 120 x 62

CMT 71

The crimping quality assurance system CMT71 has been designed to be mounted on crimping presses to
check the crimping qualità of crimped terminals.

Power Consumption : 400mA
Relay Contacts : 1 N.A + 1 N.C
Dimernsions : 160 x 60 x 150

CMT 71 LT

The crimping quality assurance system CMT71LT has been designed to be mounted only on bench crimping presses to check the crimping qualità of crimped terminals.

Power Consumption : 400mA
Relay Contacts : 1 N.A + 1 N.C
Dimernsions : 160 x 60 x 150

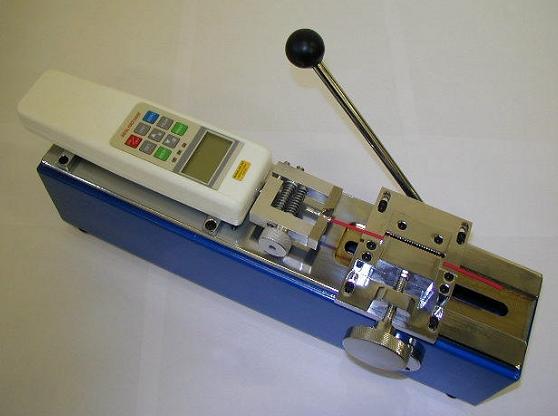

CMT 112

The digital dynamometer CMT112 is an instrument used to verify the tensile strength terminal crimped on electrical wires.

Measuring Range : 0.0 … 500N
Resolution : 0.1N
Wire Range : AWG 32 … 10 0.032…6mm²

CMT 113

The motorized digital force gauge CMT113 is designed for tensile strength testing of wire terminals in accordance with normes.

Measuring Range : 0.0 … 500N
Resolution : 0.1N
Wire Range : AWG 32 … 10 0.032…6mm²

KM 4000

Run : 80mm
Speed : 0 - 500 m/min
Unit of Measure : KG - N - dN - T
Traction Strength : 0 ÷ 100 Kg

KM 100

The KM100 is a device for checking the calibration of crimping machine.
Crimping height: 135.2mm
